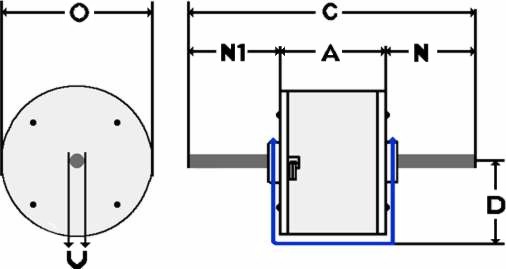

Fill in the related boxes on the quote form using this diagram.
Shaft Length = ( N1 )
Shaft Length = ( N )
Body Diameter = ( O )
Total Shaft Length = ( C )
MOTOR BASE MOTOR BASE MOTOR BASE ( O ) DIMENSION IS THE BODY DIAMETER ( C ) DIMENSION FROM THE TIP OF ONE SHAFT TO THE END OF THE OPPOSITE SHAFT OR MOTOR ( N1 ) DIMENSION IS USED FOR THE SECOND SHAFT LENGTH OF A TWO SHAFTED MOTOR ( N ) DIMENSION IS THE FIRST SHAFT LENGTH ( A ) DIMENSION IS THE BODY LENGTH ( N1 ) DIMENSION IS USED FOR THE SECOND SHAFT LENGTH OF A TWO SHAFTED MOTOR ( A ) DIMENSION IS THE BODY LENGTH ( N ) DIMENSION IS THE FIRST SHAFT LENGTH ( U ) DIMENSION IS THE SHAFT DIAMETER ( D ) DIMENSION IS FROM THE CENTER OF THE SHAFT TO THE BOTTOM OF THE MOTOR BASE ( O ) DIMENSION IS THE BODY DIAMETER
Shaft Diameter = ( U )
Shaft Center Height = ( D )
  Body Length = ( A )
